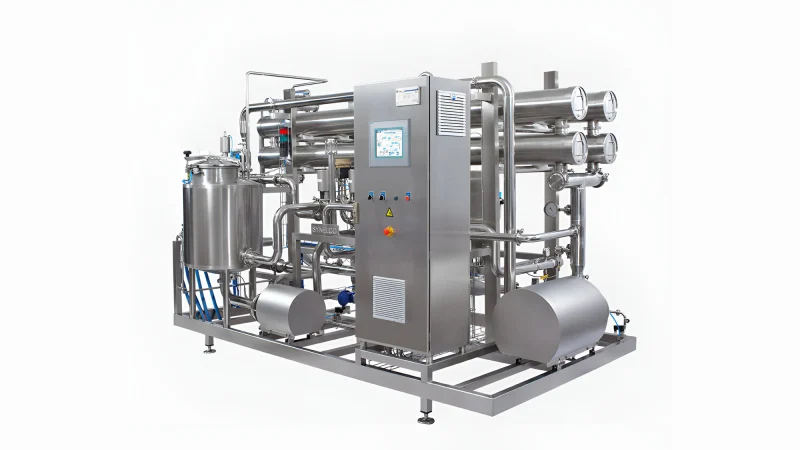

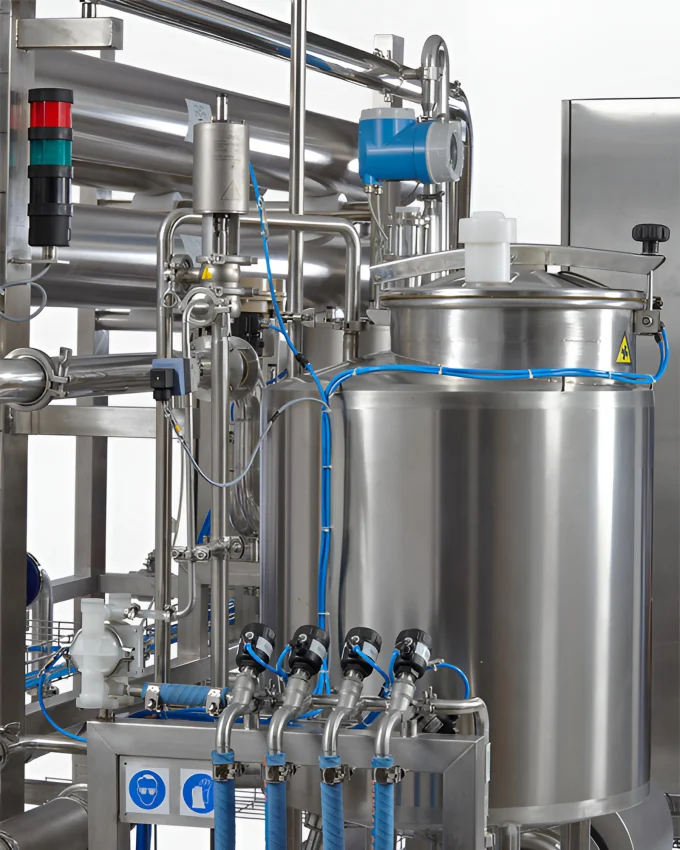

The Membran-Tech RO is a reverse osmosis system using membrane filtration technology designed for completely separating water from liquid whey, whey permeate (from UF plant), or even milk (e.g concentrated milk).
The system uses advanced Alfa Laval spiral wood membranes with pore sizes ranging from 30 to 150 Da that allow pure water to be separated from liquid whey. In this way any remains dissolved salts, lactose, acids, proteins, fat and bacteria are concentrated in the retentate.
Reverse Osmosis systems can purify water to approximately 400 COD (Chemical Oxygen Demand) and with an additional auxiliary unit (RO polisher) the water can be further cleaned reducing contamination down to 50–150 COD range, making the water suitable for reuse in the factory’s CIP process.
Get a Quote
Reverse Osmosis can significantly reduce whey, UF whey permeate or even milk volume by extracting and purifying all water, thus resulting in significant cost and energy savings.
Reverse Osmosis systems can purify water to approximately 400 COD and with an additional auxiliary unit (RO polisher) the water can be further cleaned reducing contamination down to 50–150 COD range, making the water suitable for reuse in the factory’s CIP process.
Automated control of concentration ratio and flow rate parameters ensure stable operation, and minimal operator intervention.

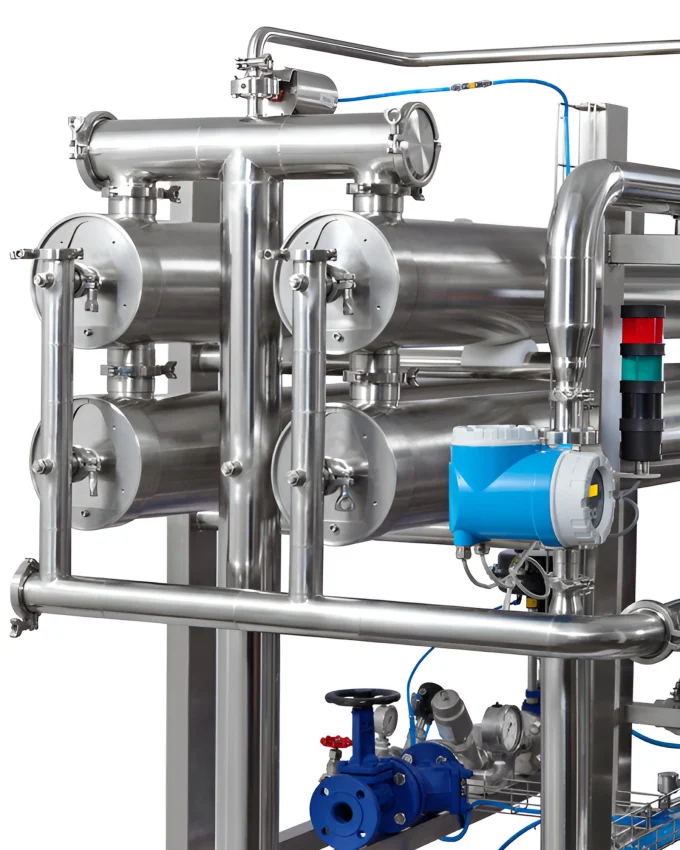

High-quality Alfa Laval spiral wood membrane elements provide reliable performance, high efficiency and extended membrane service life.
Electronic control ensures stable and reliable process performance.
Automatic cleaning cycles reduce downtime and simplify maintenance.
Designed for high efficiency and extended membrane lifespan.
Compact skid-mounted construction for fast installation.
| Feature | Details |
|---|---|
| Application | Reverse osmosis for whey concentration |
| Processing Capacity | Up to 20+ tons/hour |
| Operation | Fully automated |
| Process Control | Electronic control of concentration ratio and flow rate |
| Maximum Continuous Operation | Up to 8 hours before CIP cleaning |
| Cleaning System | Fully autonomous CIP system |
| Membrane Performance | High efficiency with long membrane service life |
| Construction | Stainless-steel skid-mounted unit |
| Delivery | Pre-assembled, fully wired and pressure-tested |
| Compliance | CE and EHEDG regulations & guidelines |
Engineering drawings providing multiple views of the Membran-Tech RO system
for layout planning and installation reference.

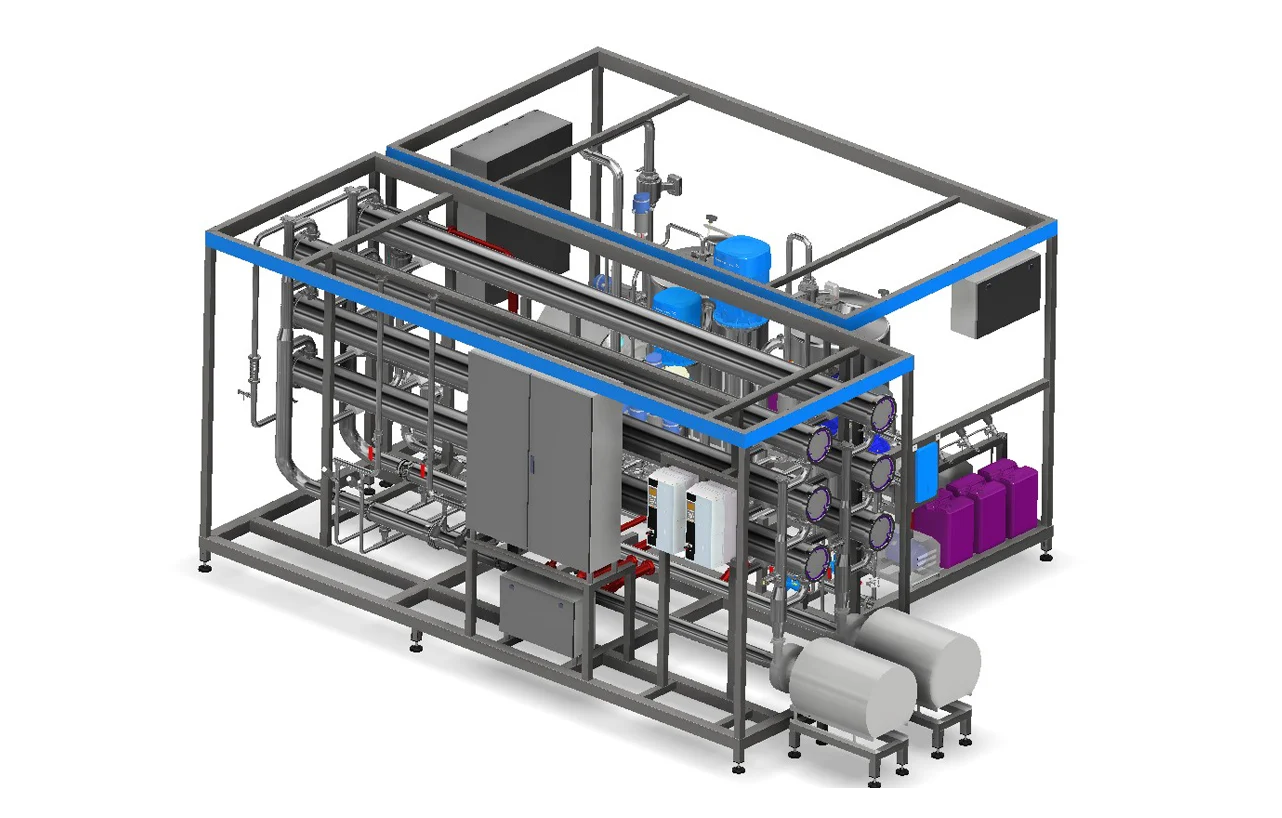

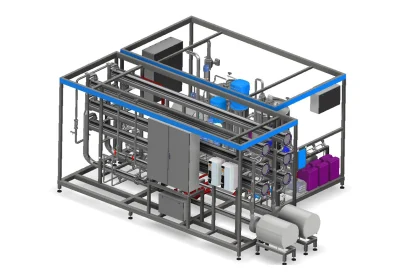

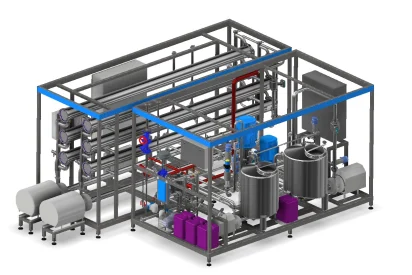

Three-dimensional front perspective of the reverse osmosis system.

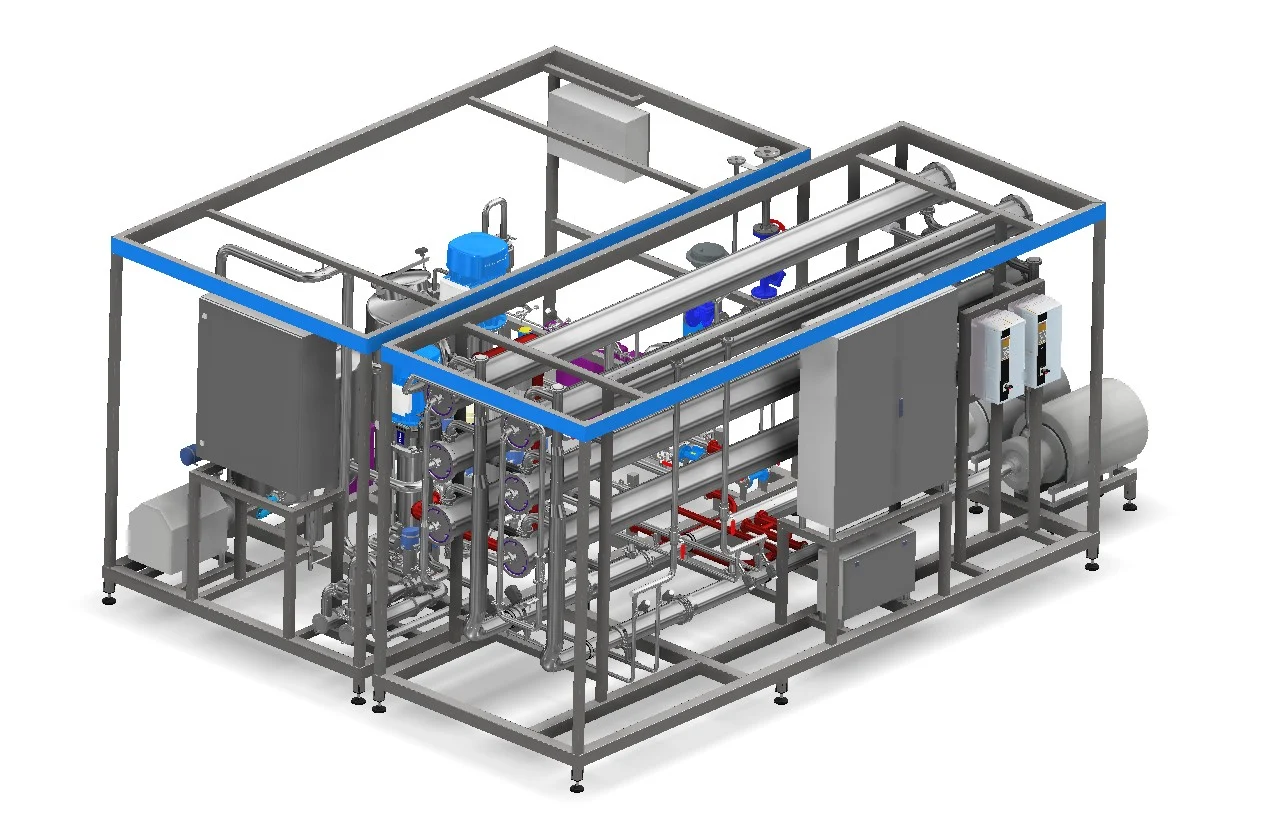

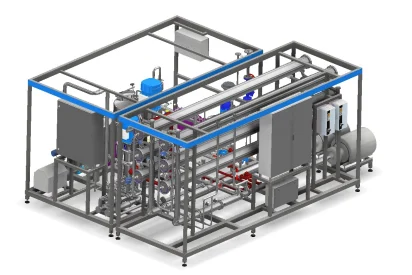

Three-dimensional rear perspective highlighting the membrane rack arrangement.
Rear-side three-dimensional perspective showing the equipment layout and utility connections.

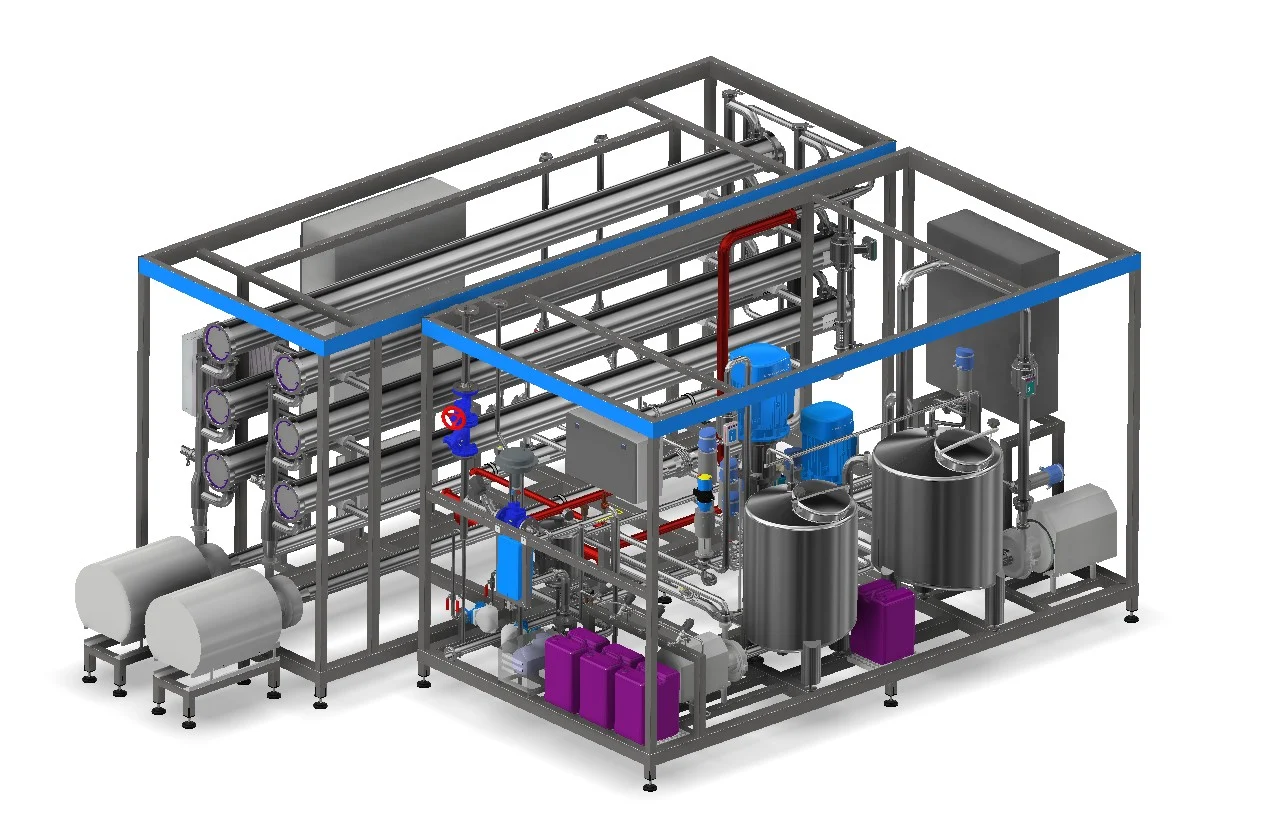

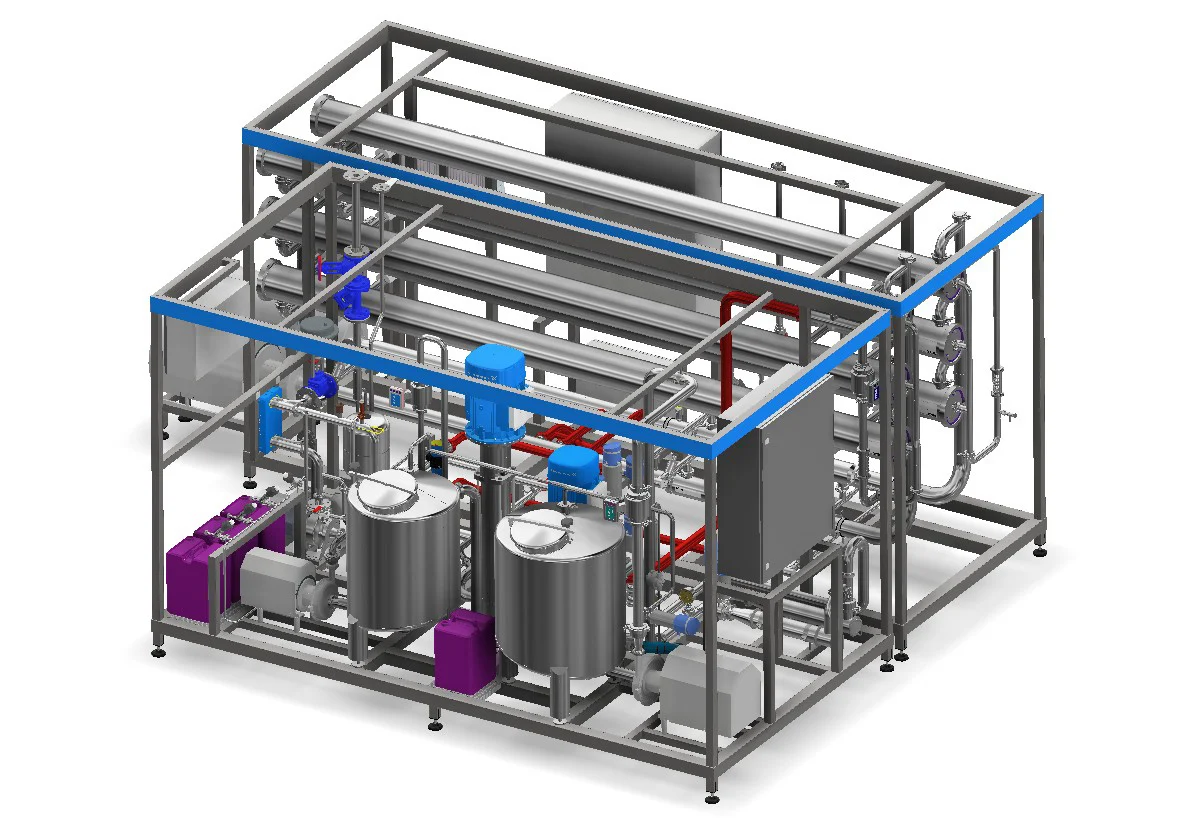

Elevated three-dimensional perspective illustrating the overall system configuration.
