Fruit & Yogurt Dosing Unit Dosaumat

Main Characteristics

Dosaumat is designed for inline dosing and mixing of two products, such as fruit into yogurt, producing a consistent and homogeneous final product. In fruit-yogurt applications, the unit is installed before the filling machine.

Built for Accurate Inline Dosing & Mixing

Designed and built for continuous 24/7 operation in compliance with CE and EHEDG European Hygienic engineering Design Group regulations & guidelines.
Automatic dosing of two product streams.
Fruit dosing is automatically adjusted according to the yogurt flow.

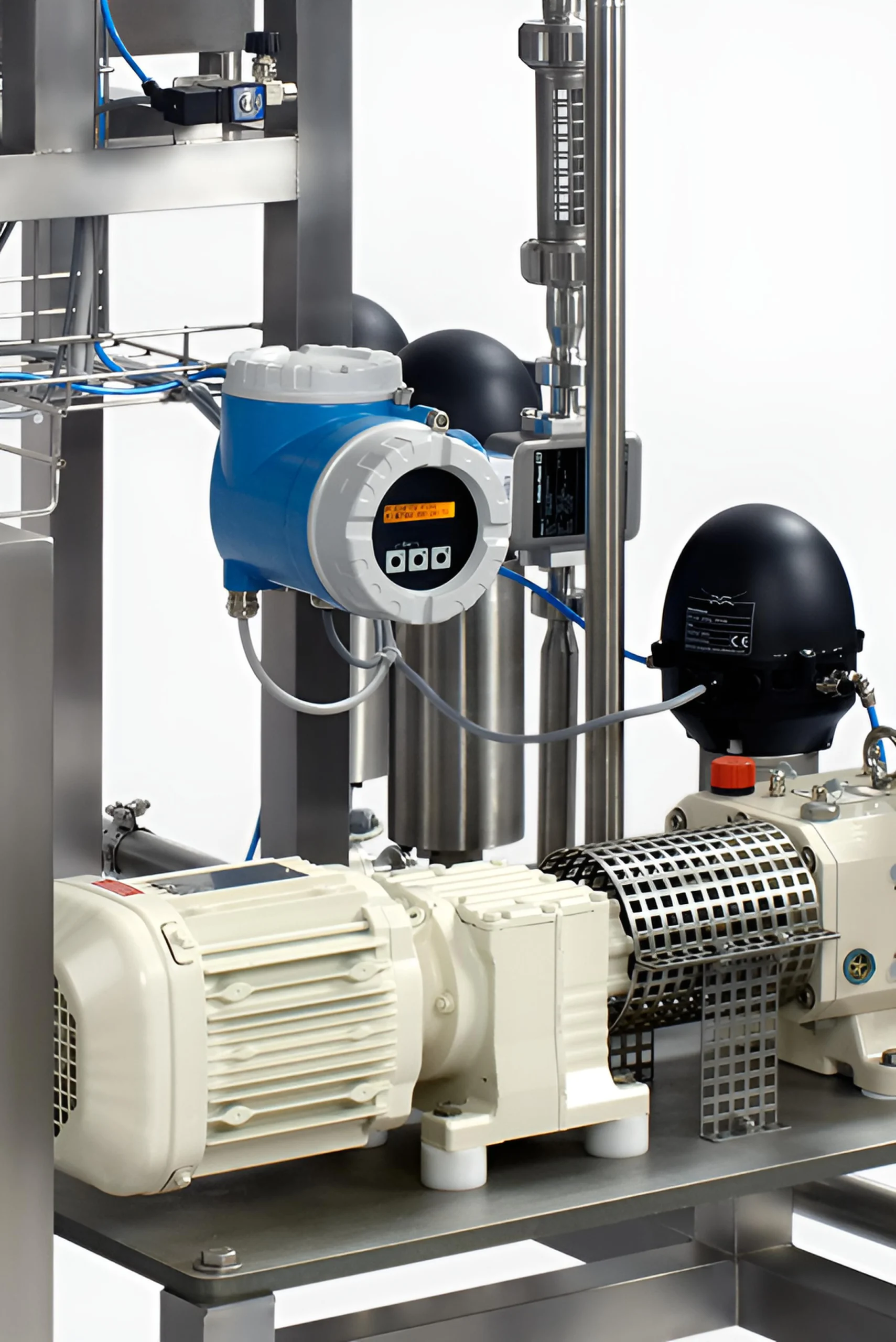

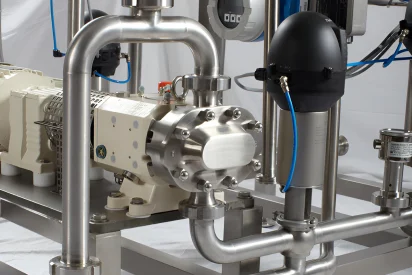

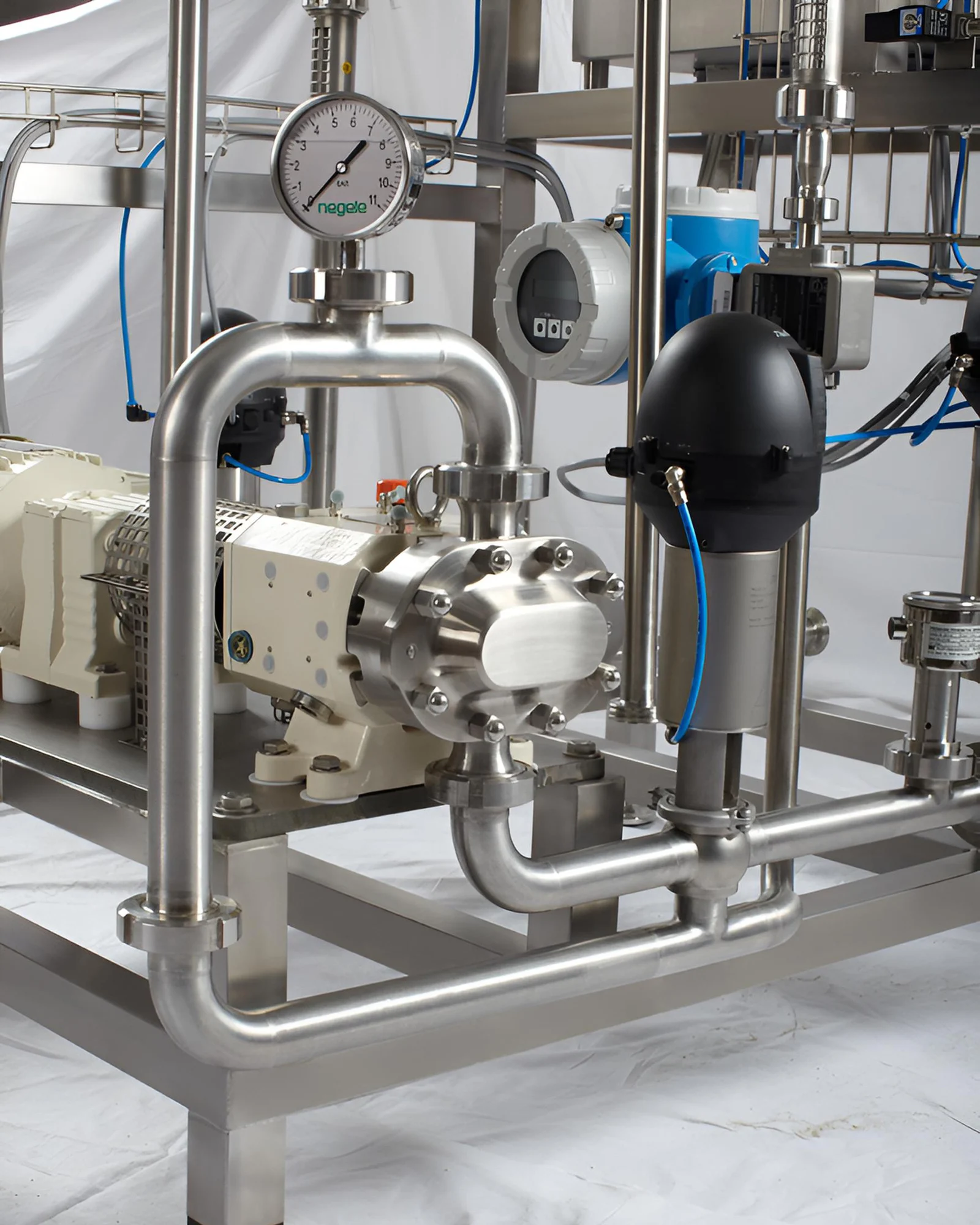

Gentle fruit pumping through a special type rotary lobe pump that ensures a constant dosing quantity per rotation without damaging fruit particles.

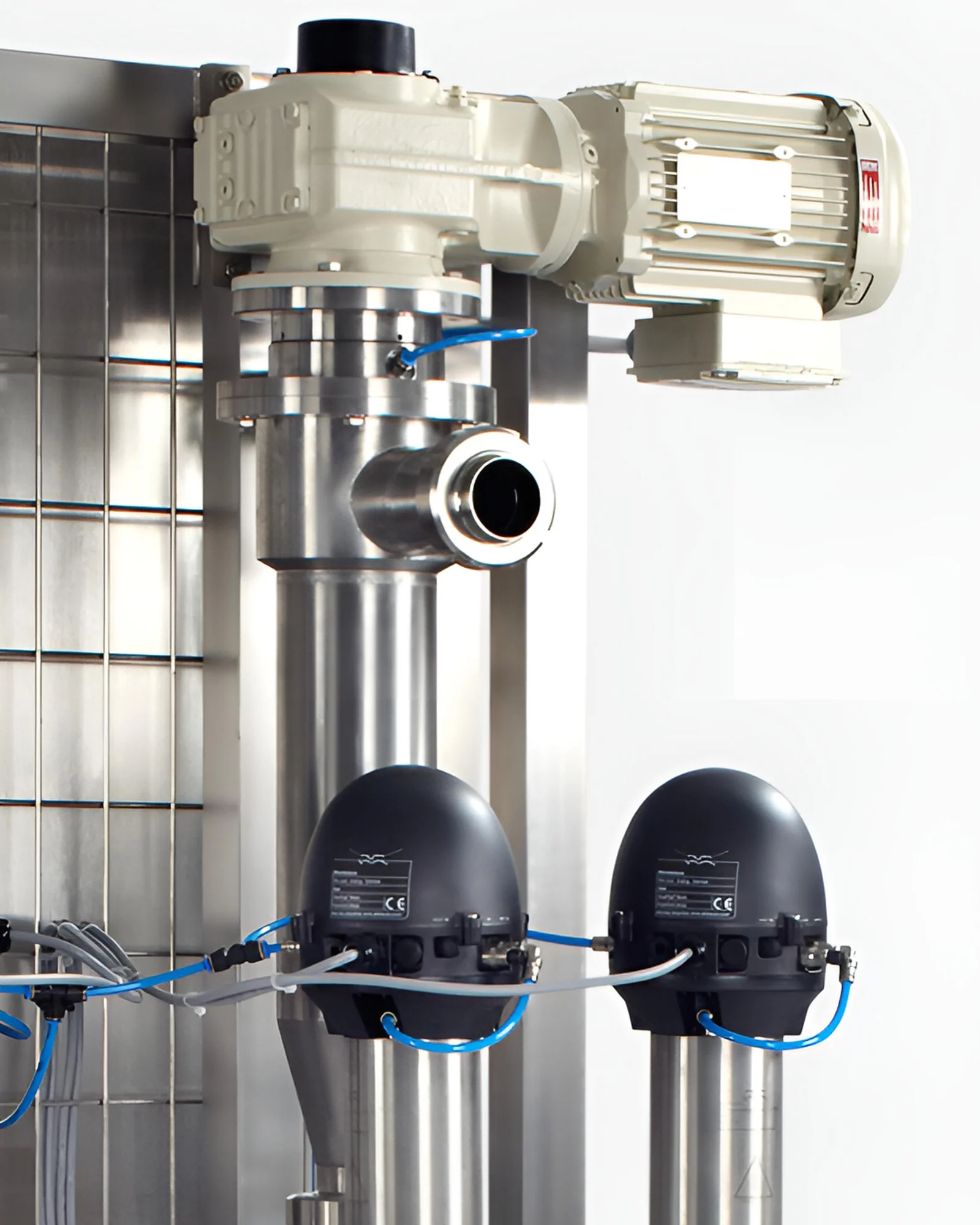

Homogeneous mixing through an integrated inline dynamic mixer.

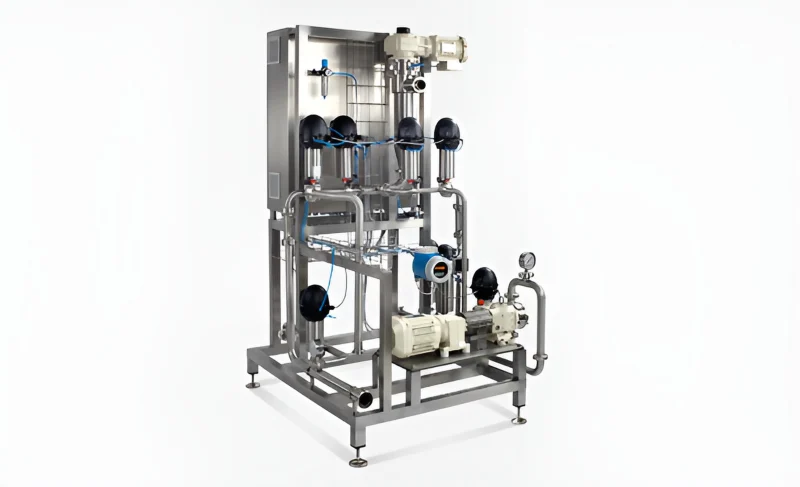

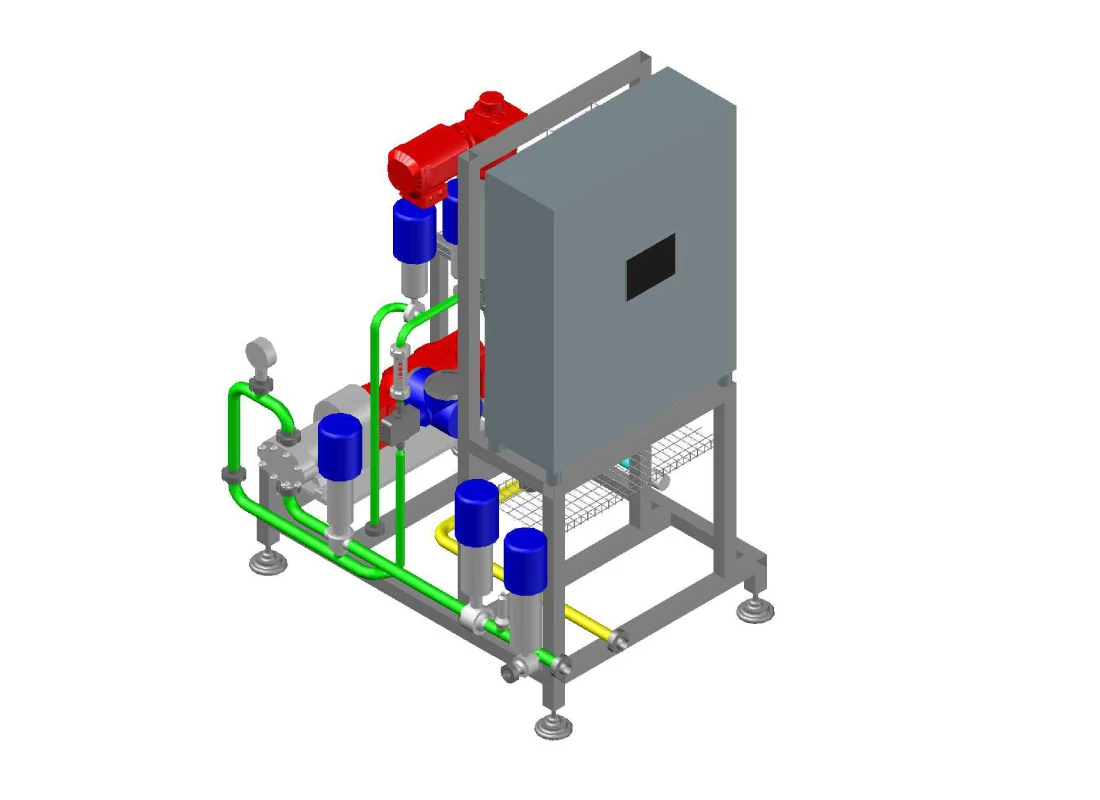

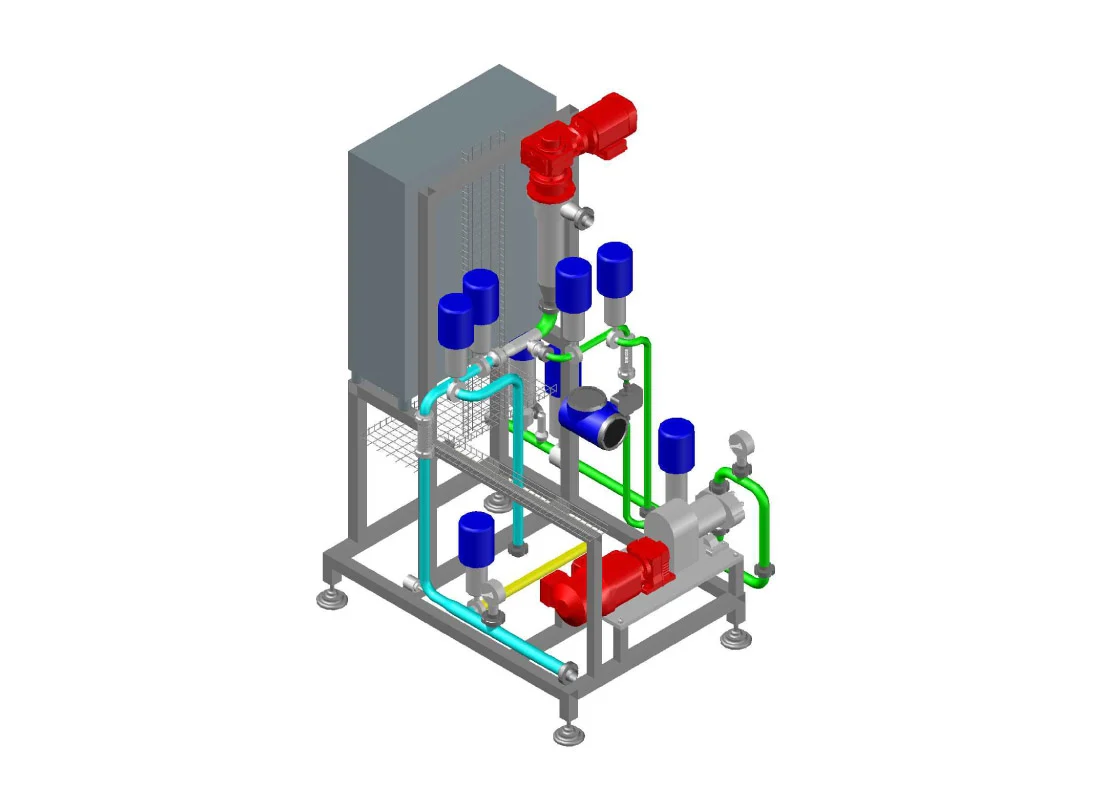

Skid-mounted on a stainless-steel frame delivered pre-assembled and fully wired.

Benefits & Advantages

Accurate Dosing Control

Fruit dosing is automatically adjusted according to the yogurt flow, helping to maintain a stable mixing ratio and consistent final product quality.

Gentle Product Handling

The special rotary lobe pump ensures constant dosing per rotation while protecting the fruit particles, even with fruit pieces up to 10 mm.

Homogeneous Mixing

An integrated inline dynamic mixer creates a consistent blend before the product reaches the filling machine.

Recipe-Based Operation

Stored recipes allow easy adjustment of mixing ratios, improving consistency and reducing dosing errors caused by operator mistakes.

Key Features

Automatic Product Dosing

Automatic dosing for consistent product ratios.

Flow-Based Ratio Control

Automatic ratio control based on product flow.

Gentle Fruit Handling

Gentle pumping protects fruit integrity.

CIP Cleaning Ready

Designed for fast and hygienic CIP cleaning.

Additional Information

Feature	Details
Application	Inline dosing and mixing for dairy products
Typical Use	Fruit dosing into yogurt before filling
Operation	Fully autonomous
Product Streams	Two product streams
Dosing Control	Fruit dosing adjusted according to yogurt flow
Pump Type	Special rotary lobe pump
Product Pieces	Suitable for fruit pieces up to 10 mm
Mixing System	Integrated inline dynamic mixer
Cleaning	Automatic cleaning through central CIP system

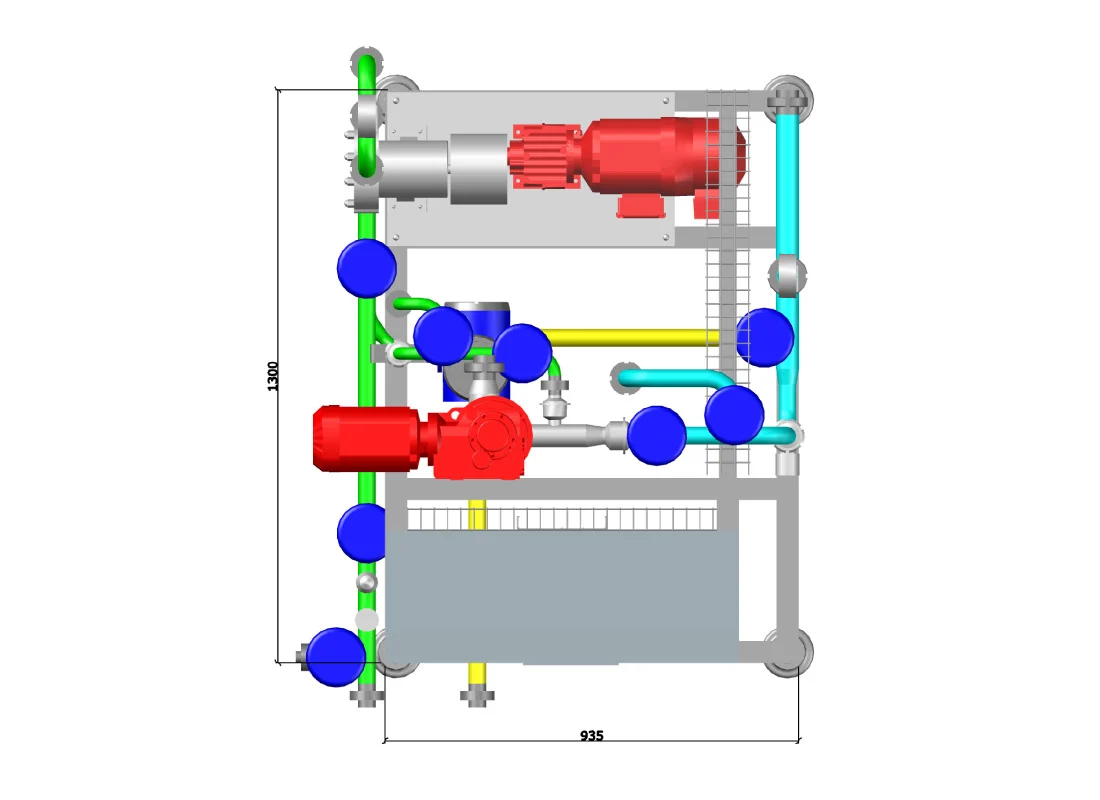

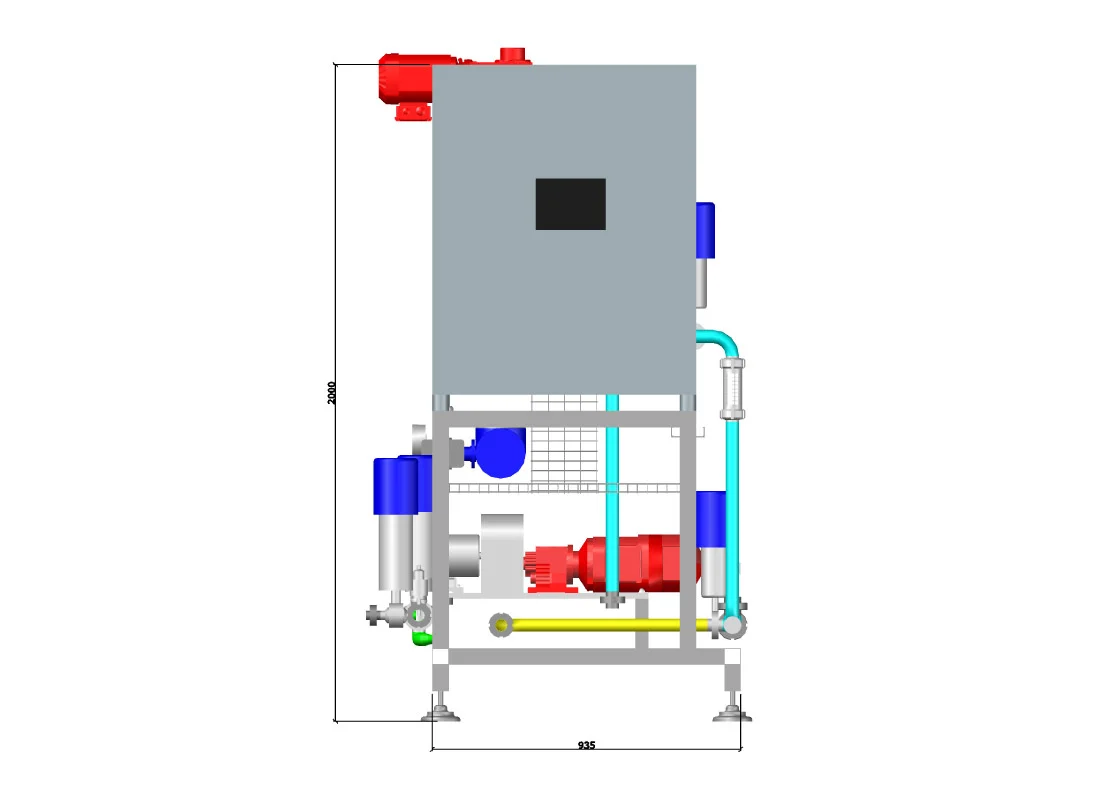

Construction	Stainless-steel skid-mounted unit
Delivery	Pre-assembled, fully wired and pressure-tested
Compliance	CE and EHEDG guidelines
